| No. | Description of Part | Part No. | 6/1 | 8/1 | 12/2 & 16/2 |
| – | AIR FILTER (Lister Felt Type) | – | – | – | – |
| – | Air Filter Complete | 010-13139 | 1 | 1 | 1 |
| – | Felt Pad for Air Filter | 010-03143 | 1 | 1 | 1 |
| – | Inlet Pipe for Air Filter (Tank Cooled) | 008-03149 | 1 | 1 | – |
| – | Nipple for Air Filter (Rad. Cooled) | 027-00245 | 1 | 1 | 1 |
| – | Elbow for Air Filter (Rad Cooled | 027-00456 | 1 | 1 | 1 |
| – | Nipple for Air Filter (Tank Cooled) | 027-00245 | – | – | 1 |
| – | Elbow for Air Filter (Tank Cooled) | 027-00456 | – | – | 1 |
| CAMSHAFT | |||||
| – | Camshaft Complete | 574-10870 | 1 | – | – |
| – | Camshaft Complete | 574-10880 | – | 1 | – |
| 1. | Camshaft | 003-00151 | 1 | 1 | – |
| 2. | Cam for Fuel Pump | 008-02124/001 | 1 | 1 | – |
| 3. | Cam for Exhaust Valve | 003-00192 | 1 | 1 | – |
| 4. | Cam for Inlet Valve | 003-00191 | 1 | 1 | – |
| 5. | Governor Gearwheel | 003-00166 | 1 | 1 | – |
| 6. | Governor Weight | 003-00167 | 2 | – | – |
| – | Governor Weight | 008-06106 | – | 2 | – |
| 7. | Governor Weight Spindle | 003-00168 | 2 | 2 | – |
| 8. | Governor Weight Spindle Split Pin | 027-00909 | 4 | 4 | – |
| 9. | Governor Sleeve Assembly | 008-24227 | 1 | 1 | – |
| 10. | Collar | 008-06054 | 1 | 1 | – |
| 11. | Taper Pin No. 6 1½” for Cams | 027-00367 | 3 | 3 | – |
| 12. | Taper Pin No. 6 13/4″ for Gear Wheel and Collar | 027-00130 | 2 | 2 | – |
| CAMSHAFT END COVER | |||||
| 13. | Camshaft End Cover with Bush 008-06002 | 574-10090 | 1 | 1 | – |
| 14. | Camshaft End Cover Bush | 008-06002 | 1 | 1 | – |
| 15. | Camshaft End Cover Joint | 003-00153 | 1 | 1 | – |
| 16. | Camshaft End Cover Nut 3/8″ Whit. | 027-00006 | 3 | 3 | – |
| 17. | Camshaft End Cover Oil Seal | 008-02177 | 1 | 1 | – |
| 18. | Governor Inside Lever (with Roller 003-00172 & Pin 003-00173) | 574-10430 | 1 | 1 | – |
| 19. | Governor Inside Lever Spindle | 008-06076 | 1 | 1 | – |
| 20. | Governor Inside Lever Spindle Taper Pin | 027-00132 | 2 | 2 | – |
| 21. | Governor Bottom Lever | 008-06078 | 1 | 1 | – |
| 22. | Governor Bottom Lever Bush | 008-06077 | 1 | 1 | – |
| 23. | Governor Connecting Rod (with Fork 003-00375* and Rivet 027-01529*) | *574-11380 | 1 | 1 | – |
| 24. | Governor Connecting Rod Locknut | *027-00008 | 1 | 1 | – |
| 25. | Governor Connecting Rod Fork | *007-00380 | 1 | 1 | – |
| 26. | Governor Upper Lever | 008-06056 | 1 | 1 | – |
| 27. | Governor Upper Lever Fulcrum Pin | 007-00381 | 1 | 1 | – |
| 28. | Governor Upper Lever Fulcrum Pin Washer | 027-00181 | 1 | 1 | – |
| 29. | Governor Upper Lever Fulcrum Pin Split Pin | 027-00123 | 1 | 1 | – |
| 30. | Governor Upper Lever Eye End | 008-06083 | 1 | 1 | – |
| 31. | Governor Upper Lever Eye End Joint Pin | 008-06033 | 1 | 1 | – |
| 32. | Joint Pin for Forks | 003-00376 | 2 | 2 | – |
| 33. | Split Pin | 027-00122 | 6 | 6 | – |
| 34. | Governor Spring | 079-00192 | 1 | 1 | – |
| 35. | Governor Spring Hook | 003-00176 | 1 | 1 | – |
| 36. | Governor Spring Hook Adjust Nut | 003-00177 | 1 | 1 | – |
| 37. | Governor Spring Hook Lock Nut | 027-00015 | 1 | 1 | – |
| 38. | Governor Spring Hook Anchor Pin Cut-off Lever Assembly – Item no. 39 to 41 | 003-00175 008-24222 |
1 1 |
1 1 |
– – |
| 39. | Cut-off Hand Lever | 008-06085 | 1 | 1 | – |
| 40. | Cut-off Spindle and Eccentric | 008-24210 | 1 | 1 | – |
| 41. | Cut-off Spindle Taper Pin | 027-00132 | 1 | 1 | – |
| 42. | Cut-off Spindle Double Coil Spring Washer | 027-01063 | 1 | 1 | – |
| 43. | Tappet for Fuel Pump (with Roller 008-02127 and pin 008-02126) | 574-10080 | 1 | 1 | – |
| 44. | Tappet Adjustment Screw | 008-02123 | 1 | 1 | – |
| 45. | Tappet Adjustment Screw Lock Nut | 027-00864 | 1 | 1 | – |
| 46. | Tappet Fixing Screw | 008-02129 | 1 | 1 | – |
| 47. | Tappet Fixing Screw Lock nut | 027-00017 | 1 | 1 | – |
| IDLER GEAR | |||||
| 48. | Idler Spindle | 008-02029 | 1 | 1 | – |
| 49. | Idler Pinion | 003-00185 | 1 | 1 | – |
| 50. | Idler Pinion Spring Washer | 027-00394 | 1 | 1 | – |
| 51. | Idler Pinion Nut – ½” Whit. | 027-00004 | 1 | 1 | – |

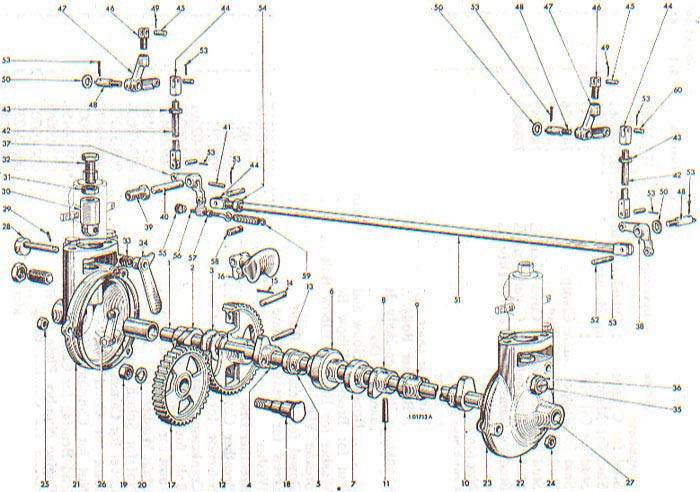

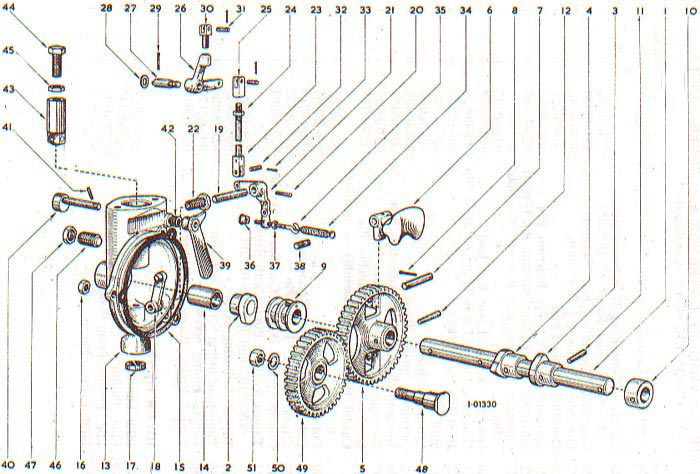

PLATE 1 – CAMSHAFT, GOVERNOR AND COVER – SINGLE CYLINDER ONLY
| No. | Description of Part | Part No. | No. Per Set |
| – | Camshaft Complete 16-2 only comprising | 574-10900 | 1 |
| – | Camshaft Complete 12-2 only | 571-10890 | 1 |
| 1. | Camshaft | 009-06001 | 1 |
| 2. | Cam for Fuel pump – No. 1 cylinder | 008-02124/001 | 1 |
| 3. | Governor Sleeve Assembly | 008-24227 | 1 |
| 4. | Cam for exhaust valve – No. 1 cylinder | 003-00192 | 1 |
| 5. | Cam for inlet valve – No. 1 cylinder | 003-00191 | 1 |
| 6. | Camshaft Center Bush Camshaft Center Bush Locating Screw | 027-00519 | 1 |
| 7. | Cam for lubricating oil pump | 003-00329 | 1 |
| 8. | Cam for inlet valve – No. 2 cylinder | 003-00191 | 1 |
| 9. | Cam for exhaust valve – No. 2 cylinder | 003-00192 | 1 |
| 10. | Cam for fuel pump – No. 2 cylinder | 008-02124/001 | 1 |
| 11. | Taper Pin for cams | 027-00367 | 7 |
| 12. | Governor Gear Wheel | 003-00166 | 1 |
| 13. | Taper Pin for gear wheel | 027-00130 | 1 |
| 14. | Governor Weight Spindle | 003-00168 | 2 |
| 15. | Governor Weight Spindle Split Pin | 027-00909 | 4 |
| 16. | Governor Weight 12-2 only | 003-00167 | 2 |
| – | Governor Weight 16-2 only | 008-06106 | 2 |
| 17. | Idler Pinion | 003-00185 | 1 |
| 18. | Idler Spindle | 008-02029 | 1 |
| 19. | Idler Pinion Nut – ½” Whit. | 027-00004 | 1 |
| 20. | Idler Pinion Spring Washer | 027-00394 | 1 |
| 21. | Camshaft End Cover – No. 1 cylinder end with bush 008-06002 | 574-10560 | 1 |
| – | End Cover Assembly comprising | 574-11150 | 1 |
| 22. | Camshaft End Cover – No. 2 cylinder end with bush 009-06003 | 574-10570 | 1 |
| 23. | Camshaft End Cover Joint | 003-00153 | 2 |
| 24. | Camshaft End Cover Nut | 027-00007 | 3 |
| 25. | Camshaft End Cover Nut – 3/8″ Whit. | 027-00006 | 3 |
| 26. | Governor Inside Lever (With roller 003-00172 and Pin 003-00173) | 574-10430 | 1 |
| 27. | Camshaft End Cover Bush | 009-06003 | 1 |
| – | Camshaft End Cover Bush | 008-06002 | 1 |
| – | Cut-off Hand Lever Assembly – Items 28, 29 and 34 | 008-24222 | 1 |
| 28. | Cut-off Spindle and Eccentric | 008-24210 | 1 |
| 29. | Cut-off Spindle Taper Pin and Governor Inside Lever Taper Pin | 027-00132 | 3 |
| 30. | Tappet for fuel pump (with roller 008-02127 and pin 008-02126) | 574-10080 | 2 |
| 31. | Tappet Adjusting Screw Locknut | 027-00864 | 2 |
| 32. | Tappet Adjusting Screw | 008-02123 | 2 |
| 33. | Cut-off Spindle Double Coil Spring Washer | 027-01063 | 1 |
| 34. | Cut-off Hand Lever | 008-06085 | 1 |
| 35. | Tappet Fixing Screw | 008-02129 | 2 |
| 36. | Tappet Fixing Screw Locknut | 027-00017 | 2 |
| 37. | Governor Bottom Lever | 008-06078 | 1 |
| 38. | Governor Bottom Lever – L. H. Side | 009-06087 | 1 |
| 39. | Governor Bottom Lever Bush | 008-06077 | 1 |
| 40. | Governor Inside Lever Spindle | 008-06076 | 1 |
| 41. | See Item 29 | – | – |
| 42. | Governor Connecting Rod – with fork 003-00375* and rivet 027-01529* | *574-11380 | 2 |
| 43. | Governor Connecting Rod Locknut | 027-00008 | 3 |
| 44. | Governor Connecting Rod Fork | 007-00380 | 3 |
| 45. | Governor Upper Lever Eye End Joint Pin | 008-06033 | 2 |
| 46. | Governor Upper Lever Eye End | 008-06083 | 2 |
| 47. | Governor Upper Lever | 008-06056 | 2 |
| 48. | Governor Upper Lever Fulcrum Pin | 007-00381 | 3 |
| 49. | Governor Upper Lever Fulcrum Pin Split Pin | 027-00123 | 3 |
| 50. | Governor Upper Lever Fulcrum Pin Washer | 027-00184 | 3 |
| 51. | Connecting Rod for bottom lever | 574-11340 | 1 |
| 52. | Governor Horizontal Connecting Rod Pin | 003-00376 | 2 |
| 53. | Split Pin | 027-00122 | 16 |
| 54. | Locknut | 027-00008 | 1 |
| 55. | Governor Spring Hook Adjusting Nut | 003-00177 | 1 |
| 56. | Governor Spring Hook | 003-00176 | 1 |
| 57. | Governor Spring Hook Locknut | 027-00015 | 1 |
| 58. | Governor Spring Hook Anchor Pin | 003-00175 | 1 |
| 59. | Governor Spring | 079-00192 | 1 |
| 60. | Joint Pin for Forks | 003-00376 | 4 |
PLATE 2 – CAMSHAFT, GOVERNOR AND COVER – 12/2 and 16/2
| No. | Description of Part | Part No. | 6/1 | 8/1 |
| – | Crankcase Assembly comprising | 574-11250 | 1 | 1 |
| 1. | Crankcase | – | 1 | 1 |
| 2. | Stud for Cylinder and Cylinder Head | 027-00861 | 4 | 4 |
| 3. | Stud for Main Bearing Housing | 027-00035 | 7 | 7 |
| 4. | Stud for Oil Filter Lid. | 027-00037 | 1 | 1 |
| 5. | Stud for Tappet Guide Clamp | 027-00036 | 1 | 1 |
| 6. | Stud for Crankcase Door | 027-00037 | 4 | 4 |
| 7. | Stud for Camshaft End Cover Gear End | 027-00057 | 1 | 1 |
| 8. | Stud for Camshaft End Cover Gear End | 027-00060 | 2 | 2 |
| 9. | Stud for camshaft End Cover Drive End | 027-00065 | 3 | 3 |
| – | Guard Stud | 027-00272 | 3 | 3 |
| – | Nut for Cylinder Head | 027-00002 | 4 | 4 |
| 10. | Crankcase Door | 008-02019 | 1 | 1 |
| 11. | Crankcase Door Joint | 003-00301 | 1 | 1 |
| 12. | Nut for Crankcase Door | 027-00007 | 4 | 4 |
| 13. | Crankcase Breather Body | 008-02025 | 1 | 1 |
| 14. | Crankcase Breather Body Joint | 003-00309 | 1 | 1 |
| 15. | Splash Guard for Door | 008-02201 | 1 | 1 |
| 16. | Bolt for Breather Elbow and Splash Guard | 027-00066 | 2 | 2 |
| 17. | Nut for Breather Elbow Bolt | 027-00007 | 2 | 2 |
| 18. | Washer for Breather Elbow Bolt | 616-01608 | 2 | 2 |
| 19. | Breater Plate | 010-02245 | 1 | 1 |
| 20. | Dowel for Breather Plate | 027-00655 | 1 | 1 |
| 21. | Screw for Breather Plate | 027-01552 | 3 | 3 |
| 22. | Washer | 027-00618 | 1 | 1 |
| 23. | Breather Disc | 021-00112 | 1 | 1 |
| 24. | Breather Cover | 008-30173 | 1 | 1 |
| 25. | Setscrew for Breather Cover | 027-01285 | 1 | 1 |
| 26. | Crankcase Splash Plate | 008-02201 | 1 | 1 |
| 27. | Bolt for Splash Plate | 027-00203 | 1 | 1 |
| 28. | Joint for Splash Plate bolt | 007-00420 | 1 | 1 |
| 28-A. | Plain Washer | 027-00184 | 2 | 2 |
| 29. | Nut for Splash Plate Bolt | 027-00006 | 1 | 1 |
| 30. | Cover for Camshaft End | 008-30108 | 1 | 1 |
| 31. | Joint for Cover | 008-30172 | 1 | 1 |
| 32. | Nut for Camshaft Cover | 027-00007 | 3 | 3 |
| 33. | End Bearing for Camshaft | 003-00155 | 1 | 1 |
| – | Engine Number Plate | 027-00666 | 1 | 1 |
| – | Dowel for Number Plate | 027-00707 | 2 | 2 |
| 34. | Joint – Crankcase to Cylinder | 008-24239 | 4 | 4 |
| – | Metal Shim 0.015″ | 008-24240 | 1 | 1 |
| – | Metal Shim 0.030″ | 008-24241 | – | 1 |
| 35. | Drain Plug for Crankcase | 027-00142 | 1 | 1 |
| 36. | Plug for Camshaft Oiling Hole | 008-02006 | 1 | 1 |
| 37. | Valve Tappet (Inlet) | 026-00128 | 1 | 1 |
| 38. | Valve Tappet (Exhaust) | 003-00493 | 1 | 1 |
| 39. | Valve Tappet Head | 026-00379 | 1 | 1 |
| 40. | Valve Tappet Guide | 003-00194 | 2 | 2 |
| – | Valve Tappet Guide Joint | 009-02227 | – | 4 |
| 41. | Valve Tappet Guide Clamp | 003-00389 | 1 | 1 |
| 42. | Spring Washer | 027-00393 | 1 | 1 |
| 43. | Valve Tappet Guide Clamp Nut | 027-00006 | 1 | 1 |
| – | Valve Lifter complete | 574-11090 | 1 | 1 |
| 44. | Valve Lifter | 008-02013/001 | 1 | 1 |
| 45. | Valve Lifter Pin | 008-06041 | 1 | 1 |
| 46. | Valve Lifter Swivel Pin | 008-02011 | 1 | 1 |
| 47. | Valve Lifter Operating Handle | 574-10010 | 1 | 1 |
| – | Valve Tappet Clearance Gauge (to order only) | 027-01419 | 1 | – |
| 48. | Oil Filter Lid. | 008-30169 | 1 | 1 |
| 49. | Oil Filler Lid Screw | 008-30170 | 1 | 1 |
| 50. | Oil Filler Spring Washer – double cone | 027-00699 | 1 | 1 |
| 51. | Oil Filler Wing Nut | 027-00687 | 1 | 1 |
| – | Plug | 027-00385 | 1 | 1 |
| – | Joint | 616-01608 | 1 | 1 |

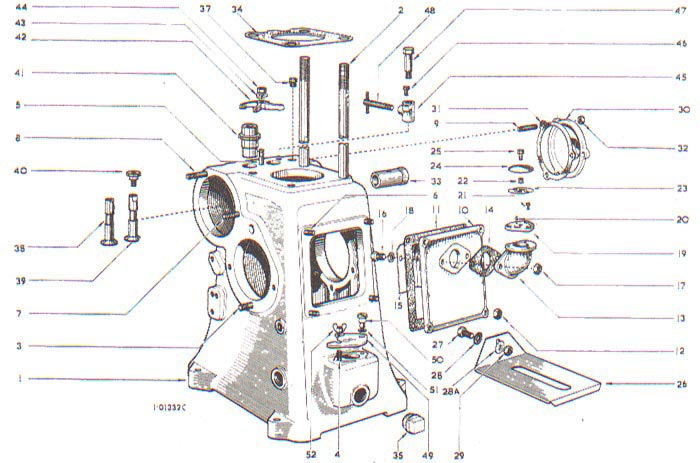

PLATE 3 – CRANKCASE – SINGLE CYLINDER ENGINES
| No. | Description of Part | Part No. | No. Per Set |
| 1. | Crankcase complete with cap for center bearing, studs and Camshaft Bush comprising* | 574-11260 | 1 |

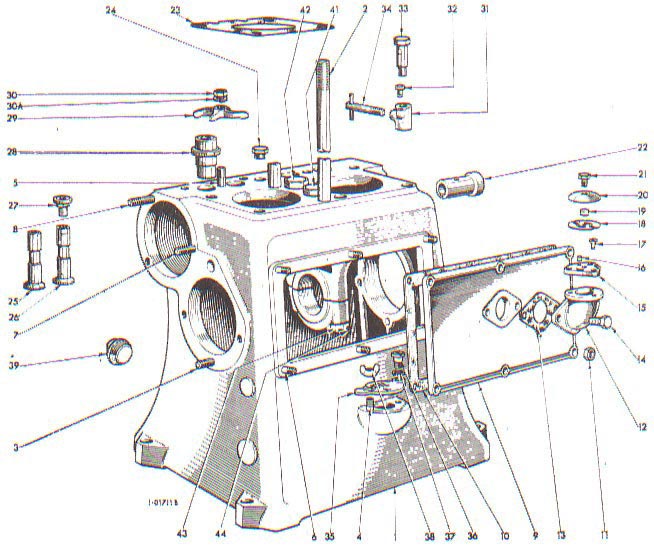

| – | Crankcase Assembly | *574-11270 | 1 |
| 2. | Stud for Cylinder and Cylinder Head | *027-00861 | 8 |
| 3. | Stud for Main Bearing Housing | *027-00035 | 7 |
| 4. | Stud for Oil Filler Lid | *027-00037 | 1 |
| 5. | Stud for Tappet Guide Clamp | *027-00036 | 2 |
| 6. | Stud for Crankcase Door | *027-00037 | 6 |
| – | Stud for lubricating Oil Pump | *027-00037 | 4 |
| 7. | Stud for Camshaft End Cover Gear End | *027-00057 | 1 |
| 8. | Stud for Camshaft End Cover Gear End | *027-00060 | 2 |
| – | Stud for Camshaft End Cover Drive End | *027-00668 | 1 |
| – | Stud for Camshaft End Cover Drive End | *027-00071 | 2 |
| – | Stud for Oil Gallery | *027-00037 | 2 |
| – | Nut for Cylinder Head | *027-00002 | 8 |
| 9. | Crankcase Door | 009-02225 | 1 |
| – | Splash Guard | 008-02201 | 1 |
| 10. | Crankcase Door Joint | 007-00301 | 1 |
| 11. | Nut for Crankcase Door | 027-00007 | 6 |
| 12. | Crankcase Breather Body | 008-02025 | 1 |
| 13. | Crankcase Breather Body Joint | 003-00309 | 1 |
| 14. | Crankcase Breather Body Bolt | 027-00066 | 2 |
| – | Copper Washer | 616-01608 | 2 |
| – | Nut | 027-00007 | 2 |
| 15. | Breather Plate | 010-02245 | 1 |
| 16. | Dowel for Breather Plate | 027-00655 | 1 |
| 17. | Screw for Breather Plate | 027-01552 | 3 |
| 18. | Breather Disc | 021-00112 | 1 |
| 19. | Washer for Breather Plate | 027-00618 | 1 |
| 20. | Breather Cover | 008-30173 | 1 |
| 21. | Set Screw for Breather Cover | 027-01285 | 1 |
| 22. | End Bearing for Camshaft | *003-00155 | 1 |
| – | Camshaft Center Bearing Locating Pin | 027-00519 | 1 |
| – | Engine Number Plate | 027-00707 | 2 |
| 23. | Joint Crankcase to Cylinder | 008-24239 | 10 |
| – | Metal Shim 0.015″ 12/2 only | 008-24240 | 2 |
| – | Metal Shim 0.030″ 16/2 only | 008-24241 | 2 |
| 24. | Plug for Camshaft Oiling Hole | 008-02006 | 1 |
| 25. | Valve Tappet (Inlet) | 026-00128 | 2 |
| 26. | Valve Tappet (Exhaust) | 003-00493 | 2 |
| 27. | Valve Tappet Head (Exhaust) | 026-00379 | 2 |
| 28. | Valve Tappet Guide | 003-00194 | 4 |
| – | Valve Tappet Guide Joint | 009-02227 | 4 |
| 29. | Valve Tappet Guide Clamp | 003-00389 | 2 |
| 30. | Valve Tappet Guide Clamp Nut | 027-00006 | 2 |
| 30A. | Spring Washer | 027-00393 | 2 |
| 31. | Valve Lifter | 009-02015/001 | 1 |
| – | Valve Lifter No. 1 Cylinder 12/2 to 16/2 | 008-02013/001 | 1 |
| 32. | Valve Lifter Pin | 008-06041 | 2 |
| 33. | Valve Lifter Swivel Pin | 008-02011 | 2 |
| 34. | Valve Lifter Operating Handle | 574-10010 | 2 |
| – | Valve Tappet Clearance Gauge (to order only) | 027-01419 | 1 |
| 35. | Oil Filter Lid | 008-30169 | 1 |
| – | Oil Filter Stud | 027-00033 | 1 |
| 36. | Oil Filler Lid Screw | 008-30170 | 1 |
| 37. | Oil Filler Spring Washer | 027-00699 | 1 |
| 38. | Oil Filler Wing Nut | 027-00687 | 1 |
| 39. | Drain Plug | 027-00142 | 1 |
| 41. | Crankshaft Center Bearing Bolt-Short | 009-02180 | 1 |
| 42. | Crankshaft Center Bearing Bolt-long | 009-02179 | 1 |
| 43. | Crankshaft Center Bearing Nut | 027-01316 | 2 |
| 44. | Crankshaft Center Bearing Split Pin | 027-01363 | 2 |
| – | Decompressor Assembly No. 1 Cylinder | 574-11090 | 1 |
| – | Decompressor Assembly No. 2 Cylinder | 574-11330 | 1 |

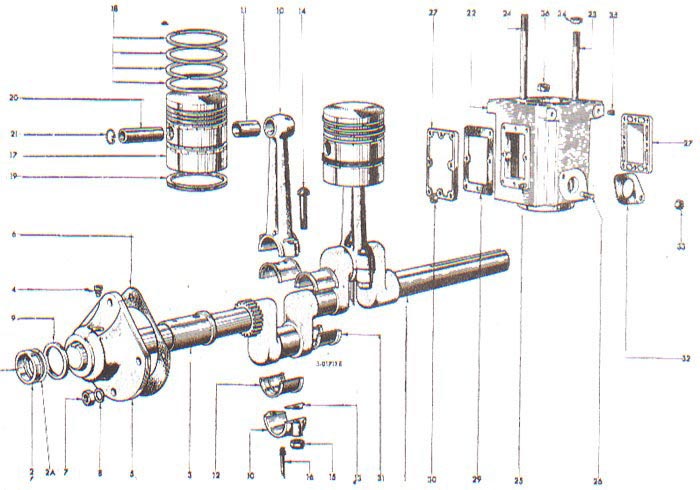

PLATE 4 – CRANKCASE – 12/2 and 16/2
| No. Per Set | ||||
| No. | Description of Part | Part No. | 6/1 | 8/1 |
| – | CRANKSHAFT | – | – | – |
| 1. | Crankshaft with Pinion | 574-10390 | 1 | 1 |
| – | Crankshaft for Direct Coupled Engines only | 574-10400 | 1 | 1 |
| 2. | Spacer | 008-30168 | 2 | 2 |
| 2A. | Oil Thrower | 201-12240 | 2 | 2 |
| – | Main Bearing Assembly comprising | 574-10120 | – | – |
| 3. | Crankshaft Main Bearing Bush | 008-02004/119 | – | – |
| 4. | Crankshaft Main Bearing Bush Screw | 002-00129 | 2 | 2 |
| 5. | Crankshaft Main Bearing Housing | 008-02069 | 2 | 2 |
| 6. | Crankshaft Main Bearing Housing Joint | 008-02062 | 2 | 2 |
| 7. | Crankshaft Main Bearing Housing Nut | 027-00004 | 7 | 7 |
| 8. | Crankshaft Main Bearing Housing Washer | 027-00394 | 7 | 7 |
| 9. | Crankshaft Felt Ring | 003-00664 | 2 | 2 |
| – | FLYWHEEL | – | – | – |
| – | Flywheel 24″ X 3½” | 008-05004 | 2 | – |
| – | Flywheel 235/8″ X 3½” | 008-05133 | – | 2 |
| – | Flywheel 23″ X 3½” | 008-05134 | – | 2 |
| – | Flywheel 25″ X 33/4″ with Coupling Facings (6/1 only) | 008-05032 | 1 | – |
| – | Flywheel 25″ X 33/4″ without Coupling Facings | 008-05033 | 1 | – |
| – | Flywheel Key | 004-00162 | 2 | 2 |
| – | Flywheel Key Guard | 008-24237 | 1 | 1 |
| CONNECTING ROD | ||||
| – | Connecting Rod complete | 574-10240 | 1 | 1 |
| 10. | Connecting Rod with small end bush, Cap. Bolts and Nuts | 574-10460 | 1 | 1 |
| 11. | Connecting Rod Bush | 008-04007/001 | 1 | 1 |
| 12. | Connecting Rod Bearing | 57-10320 | 1 | 1 |
| 13. | Connecting Rod Bearing Shim | 003-00125/001 | 2 | 2 |
| 14. | Connecting Rod Bolt | 008-04006 | 2 | 2 |
| 15. | Connecting Rod Bolt Nut | 027-04356 | 2 | 2 |
| 16. | Connecting Rod Dipper | 008-24249 | 1 | 1 |
| PISTON | ||||
| – | Piston with Rings, Gudgeon Pin and Circlips | 574-10340 | 1 | – |
| – | Piston Rings only – Set | 574-10970 | 1 | – |
| 17. | Piston | Not Available Separately | – | – |
| 18. | Piston Compression Ring | “ | – | – |
| 19. | Piston Scraper Ring | “ | – | – |
| 20 | Gudgeon Pin | “ | – | – |
| 21. | Gudgeon Pin Circlips | 008-04010 | 2 | – |
| PISTON | ||||
| – | Piston with Rings, Gudgeon Pin and Circlips | 574-10350 | – | 1 |
| – | Piston Rings only – Set | 574-10980 | – | 1 |
| – | Piston | Not available Separately | – | – |
| – | Piston Top Compression Ring | “ | – | – |
| – | Piston Compression Ring | “ | – | – |
| – | Piston Scraper Ring | “ | – | – |
| – | Gudgeon Pin | “ | – | – |
| – | Gudgeon Pin Circlips | 008-04010 | – | 2 |
| CYLINDER | ||||
| 22. | Cylinder with Studs * | 574-11000 | 1 | 1 |
| 23. | Stud for Cylinder Head (Short) | *027-00862 | 2 | 2 |
| 24. | Stud for Cylinder Head (long) | *027-00805 | 1 | 1 |
| 25. | Stud for Water Jacket Door | *027-00037 | 16 | 16 |
| 26. | Stud for Water Pipe Flange | *027-00036 | 2 | 2 |
| 27. | Water Jacket Door | *008-02020 | 2 | 2 |
| 28. | Water Jacket Door Joint | *026-00112 | 2 | 2 |
| 29. | Water Jacket Door Nut | *027-00007 | 16 | 16 |
| 30. | Water Pipe Flange | 008-02024 | 1 | 1 |
| 31. | Water Pipe Flange Joint | 010-02059 | 1 | 1 |
| 32. | Water Pipe Flange Nut | 027-00006 | 2 | 2 |
| 33. | Cylinder Head Nut | 027-00026 | 3 | 3 |
| 34. | Grub Screw for Cylinder Block | 027-01730 | 4 | 4 |
| 35. | Locating Washer for Cylinder Head | 008-03024 | 2 | 2 |

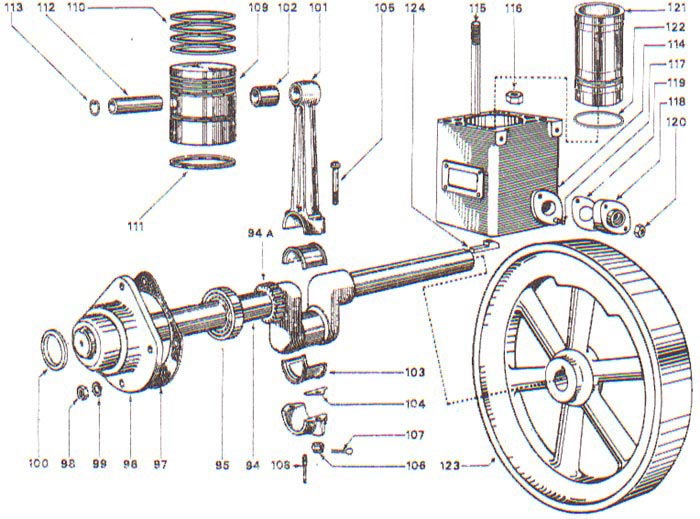

PLATE 5 – CRANKSHAFT (BUSH), CONNECTING ROD, PISTON AND CYLINDER
| No. | Description of Part | No. Per Set |
| 94 | Crankshaft with Gear | 1 |
| 95 | Tapper Roller Bearing with Cone | 2 |
| 96. | Tapper Roller Bearing Housing | 2 |
| 97. | Housing Packing | 4 |
| 98. | Housing Nut | 7 |
| 99. | Spring Washer | 8 |
| 100. | Oil Seal | 2 |
| 101. | Connecting Rod with Cap | 1 |
| 102. | Gujjan Pin Bush | 1 |
| 103. | Connecting Rod Bearing | 1 |
| 104. | Sims for Connecting Rod Brass | 2 |
| 105. | Connecting Rod Bolt | 2 |
| 106. | Nut for Connecting Rod Bolt | 2 |
| 107. | Split Pin | 2 |
| 108. | Connecting Rod Dipper | 1 |
| 109. | Piston | 1 |
| 110. | Compression Ring for Piston (3) | 4 |
| 111. | Compression Ring for Piston (2) | 1 |
| 112. | Gujjan Pin | 1 |
| 113. | Gujjan Pin Surclip | 2 |
| 114. | Cylinder Block | 1 |
| 115. | Head and Bracket Stud | 1 |
| 116. | Nut for Stud | 1 |
| 117. | Water Pipe Flange Stud | 2 |
| 118. | Water pipe Flange | 1 |
| 119. | Packing Water Pipe Flange | 1 |
| 120. | Nut for Water Pipe Flange | 2 |
| 121. | Cylinder Liner | 1 |
| 122. | Rubber Ring for Liner | 2 |
| 123. | Flywheel | 2 |
| 124. | Flywheel Key | 2 |
PLATE – 5A – CRANKSHAFT (TAPPER ROLLER BEARING), CONNECTING ROD, PISTON CYLINDER AND FLYWHEEL
| No. Per Set | ||||
| No. | Description of Part | Part No. | 12/2 | 16/2 |
| – | CRANKSHAFT | – | – | – |
| 1. | Crankshaft 2″ dia. with 2½” Crankpin | 574-10630 | 1 | 1 |
| – | Crankshaft for Direct Coupled Engines only | 574-10640 | 1 | 1 |
| 2. | Spacer | 003-30168 | 2 | 2 |
| 2A. | Oil Thrower | 201-12240 | 2 | 2 |
| 3. | Crankshaft Main Bearing Bush | 008-02004/019 | 2 | 2 |
| 4. | Crankshaft Main Bearing Bush Screw | 002-00129 | 2 | 2 |
| 5. | Crankshaft Main Bearing Housing | 008-02169 | 2 | 2 |
| 6. | Crankshaft Main Bearing Housing Joint | 008-02062 | 6 | 6 |
| 7. | Crankshaft Main Bearing Housing Nut | 027-00004 | 7 | 7 |
| 8. | Crankshaft Main Bearing Housing Washer | 027-00393 | 7 | 7 |
| 9. | Crankshaft Felt Ring | 003-00664 | 2 | 2 |
| – | Crankshaft Pinion | 008-05002 | – | 1 |
| – | FLYWHEEL | – | – | – |
| – | Flywheel 24″ X 3½” Face 2″ bore | 008-05004 | 1 | – |
| – | Flywheel 24″ X 3½” Face 2″ bore | 009-05045 | 1 | – |
| – | Flywheel 25″ X 33/4″ Face X 2″ bore (with coupling Facings) | 009-05072 | 1 | – |
| – | Flywheel 25″ X 33/4″ face X 2″ bore (with out coupling Facings) | 008-05033 | 1 | – |
| – | Flywheel 25″ X 33/4″ | 009-05130 | 1 | – |
| – | Standard Flywheel 255/8″ X 3½” (Starting Handle End) | 008-05133 | – | 1 |
| – | Standard Flywheel 235/8″ X 3½” | 009-05136 | – | 1 |
| – | Heavy Flywheel 23″ X 3½” (Starting Handle End) | 008-05134 | – | 1 |
| – | Heavy Flywheel 23″ X 3½” | 009-05137 | – | 1 |
| – | Flywheel Key | 004-00162 | 2 | 2 |
| – | Flywheel Key Guard | 008-24237 | 2 | 2 |
| CONNECTING ROD | ||||
| 10. | Connecting Rod complete for 2½” Crankpin | 574-10590 | 2 | 2 |
| – | Connecting Rod Small End Bush, Cap, Bolts | 574-10650 | 2 | 2 |
| 11. | Connecting Rod Bush, Small End | 008-04007/001 | 2 | 2 |
| 12. | Connecting Rod Bearing (2 halves 2½” bore) | 574-10320 | 2 | 2 |
| 13. | Connecting Rod Shim | 003-00125/001 | 4 | 4 |
| 14. | Connecting Rod Bolt | 008-04006 | 4 | 4 |
| 15. | Connecting Rod Bolt Nut | 027-04356 | 4 | 4 |
| 16. | Connecting Rod Dipper | 008-04012 | 2 | 2 |
| PISTON | ||||
| – | Piston with Rings, Gudgeon Pin and Circlips | 574-10340 | 1 | – |
| – | Piston Rings only – Set | 574-10970 | 1 | – |
| 17. | Piston | Not Available Separately | – | – |
| 18. | Piston Compression Ring | “ | – | – |
| 19. | Piston Scraper Ring | “ | – | – |
| 20 | Gudgeon Pin | “ | – | – |
| 21. | Gudgeon Pin Circlips | 008-04010 | 2 | – |
| PISTON | ||||
| – | Piston with Rings, Gudgeon Pin and Circlips | 574-10340 | 2 | – |
| – | Piston with Rings, Gudgeon Pin and Circlips | 574-10350 | – | 2 |
| – | Piston Rings only – Set | 574-10970 | 2 | – |
| – | Piston Rings only – Set | 574-10980 | – | 2 |
| 17. | Piston | Not available Separately | – | – |
| Piston | “ | – | – | |
| 18. | Pistong Ring (1/8″ wide) | “ | – | – |
| – | Piston Top Compression Ring | “ | – | – |
| 19. | Piston Scraper Ring | “ | – | – |
| 20. | Gudgeon Pin | “ | – | – |
| 21. | Gudgeon Pin Retaining Clips | 008-04010 | 4 | 4 |
| CYLINDER | ||||
| 22. | Cylinder with Studs and Water Jacket Doors | 574-11000 | 2 | 2 |
| 23. | Stud for Cylinder Head (Short) | 027-00862 | 4 | 4 |
| 24. | Stud for Cylinder Head (long) | 027-00805 | 2 | 2 |
| 25. | Stud for Water Jacket Door | 027-00037 | 32 | 32 |
| 26. | Stud for Water Inlet Manifold | 027-00036 | 4 | 4 |
| – | Stud for water inlet manifold – radiator cooled | 027-00050 | 4 | 4 |
| 27. | Water Jacket Door | 008-02020 | 4 | 4 |
| 29. | Water Jacket Door Joint | 026-00112 | 4 | 4 |
| 30. | Water Jacket Door Nut | 027-00007 | 32 | 32 |
| 31. | Crankshaft Center Bearing | 574-10610/119 | 1 | 1 |
| – | Crankshaft Center Bearing Dowel | 027-00032 | 1 | 1 |
| 32. | Water Pipe Flange Joint | 010-02059 | 2 | 2 |
| 32. | Water Pipe Flange Nut | 027-00006 | 4 | 4 |
| – | Water Inlet Manifold | 009-02213 | 1 | 1 |
| 34. | Nut for Cylinder Head Stud | 027-00026 | 6 | 6 |
| 35. | Grub Screw for Cylinder Head | 027-01730 | 8 | 8 |
| 36. | Locating Washer for Cylinder Block | 008-03024 | 4 | 4 |

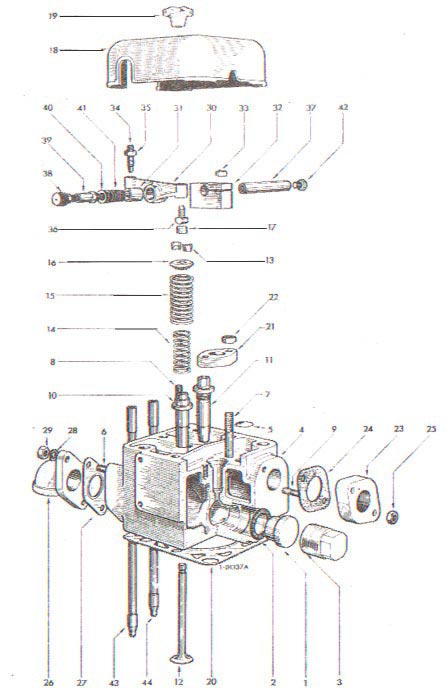

PLATE 6 – CRANKSHAFT, CONNECTING ROD, PISTON AND CYLINDER 12/2 and 16/2
| No. | Description of Part | Part No. | 6/1 | 8/1 | 12/2 & 16/2 |
| – | CYLINDER HEAD | – | – | – | – |
| 1. | Main Plug | 008-03178 | 1 | 1 | 2 |
| 2. | Main Plug Joint | 010-03091 | 5 | 1 | 10 |
| 3. | Sealing Plut | 08-03179 | 1 | 1 | 2 |
| – | No. 1 Cylinder Head complete comprising* | 574-11110 | 1 | 1 | 1 |
| – | No. 1 Cylinder Head complete comprising * | 574-11120 | – | – | 1 |
| 4. | Cylinder Head Bare | *009-07092 | 1 | 1 | 1 |
| 5. | 1¼” Expansion Plug | -027-00768 | 4 | 4 | 4 |
| 6. | Stud for Inlet and Exhaust Flanges | *027-00220 | 4 | 4 | 4 |
| 7. | Stud for Injector | *027-04495 | 2 | 2 | 2 |
| 8. | Stud for Cylinder Head Cover and Rocket Bracket | *027-03701 | 1 | 1 | 1 |
| 9. | Stud for Water Outlet Flange | *027-00036 | 2 | 2 | 2 |
| – | Stud for Water outlet flange – radiator cooled | 027-00050 | 2 | 2 | 2 |
| 10. | Inlet Valve Guide | *010-03039 | 1 | 1 | 1 |
| 11. | Exhaust Valve Guide | *010-03083 | 1 | 1 | 1 |
| 12. | Inlet and Exhaust Valve | *010-03121 | 2 | 2 | 2 |
| 13. | Valve Cotters (pairs) | *010-03025 | 2 | 2 | 2 |
| 14. | Valve Spring, Inner | *012-03219 | 2 | 2 | 2 |
| 15. | Valve Spring, Outer | *012-03129 | 2 | 2 | 2 |
| 16. | Valve Spring Carrier | *010-03130 | 2 | 2 | 2 |
| 17. | Valve Stem Cap | 010-03023 | 2 | 2 | 4 |
| 18. | Cylinder Head Cover | 008-03026/001 | 1 | 1 | 2 |
| 19. | Cylinder Head Cover Hand Nut | 026-00081 | 1 | 1 | 2 |
| 20. | Cylinder Head Gasket | 008-03051 | 1 | 1 | 2 |
| 21. | Injector Flange | 010-03031 | 1 | 1 | 2 |
| 22. | Injector Flange Nut | 027-00005 | 2 | 2 | 4 |
| 23. | Water Outlet Flange | 008-02024 | 1 | 1 | – |
| 24. | Water Outlet Flange Joint | 010-02059 | 1 | 1 | 2 |
| 25. | Water Outlet Flange Nut | 027-00006 | 2 | 2 | 4 |
| – | Water Outlet Elbow (No. 1 Cyl.) | 011-03042 | – | – | 1 |
| – | Water Outlet Elbow (No. 2 Cyl.) | 011-03063 | – | – | 1 |
| – | Water Outlet T-Connection | 027-00458 | – | – | 1 |
| – | Water Outlet Hose | 027-01227 | – | – | 2 |
| – | Water Outlet Hose Clip | 027-04233 | – | – | 4 |
| – | Exhaust Flange | 003-00135 | 1 | 1 | 2 |
| 26. | Air Inlet Flange | 008-03176 | 1 | 1 | – |
| – | Inlet Manifold | 009-03029 | – | – | 1 |
| – | Air Silencer | 102-00101 | – | – | 1 |
| – | Exhaust Manifold | 009-03036 | – | – | 1 |
| 27. | Inlet and Exhaust Flange Joint | 003-00307 | 2 | 2 | 4 |
| 28. | Spring Washer for Flanges | 027-00393 | 4 | 4 | 8 |
| Note : On Cylinder heads supplied as spares check that the inlet valve guides are in the correct position. They should be so fitted that they are together to suit the air inlet manifold. | |||||
| 29. | Nut for Flanges | 027-00006 | 4 | 4 | 8 |
| – | Valve Rocker with bush and Striking Pin | 574-10170 | 2 | 2 | 4 |
| 30. | Valve Rocket | 008-03013 | 2 | 2 | 4 |
| 31. | Valve Rocket Bush | 008-24165 | 2 | 2 | 4 |
| 32. | Valve Rocket Bracket | 008-03018 | 1 | 1 | 2 |
| – | Valve Rocket Bracket Washer | 027-00229 | 1 | 1 | 2 |
| 33. | Nut for Valve Rocket Bracket | 027-00006 | 1 | 1 | 2 |
| 34. | Valve Rocker Adjusting Screw | 026-00098 | 2 | 2 | 4 |
| 35. | Lock Nut for valve Rocket Adjusting Screw | 027-00714 | 2 | 2 | 4 |
| 36. | Valve Rocker Striking Pin | 010-03015 | 2 | 2 | 4 |
| 37. | Valve Rocker Shaft | 008-03017 | 1 | 1 | 2 |
| 38. | Valve Rocker Shaft Greaser | 027-00606 | 1 | 1 | 2 |
| 39. | Valve Rocker Greaser Connection | 008-03022 | 1 | 1 | 2 |
| 40 | Valve Rocker Shaft Washer | 027-00184 | 2 | 2 | 4 |
| 41. | Valve Rocker Shaft Spring | 008-03053 | 2 | 2 | 4 |
| 42. | Valve Rocker Shaft Plug | 008-03019 | 1 | 1 | 2 |
| 43. | Inlet Valve Push Rod | 008-03020 | 1 | 1 | 2 |
| 44. | Exhaust Valve Push Rod | 008-03021 | 1 | 1 | 2 |
| – | Instruction Transfer (English) | 027-04369 | 1 | 1 | 1 |
PLATE 7 – CYLINDER HEAD
| No. | Description of Part | Part No. | 6/1 | 8/1 | 12/2 & 16/2 |
| – | FUEL PUMP | – | – | – | – |
| 1. | Fuel Filter | 201-11613 | 1 | 1 | 1 |
| – | Element and Joints for filter | 201-13117 | 1 | 1 | 1 |
| 2. | Set of joints for filter | 201-13114 | 1 | 1 | 1 |
| 3. | Set Screw | 270-00029 | 2 | 2 | 2 |
| 4. | Spring Washer | 027-00717 | 2 | 2 | 2 |
| 5. | Swivel Union Plug | 201-15400 | 2 | 2 | 2 |
| 6. | Joint | 013-22350 | 4 | 4 | 4 |

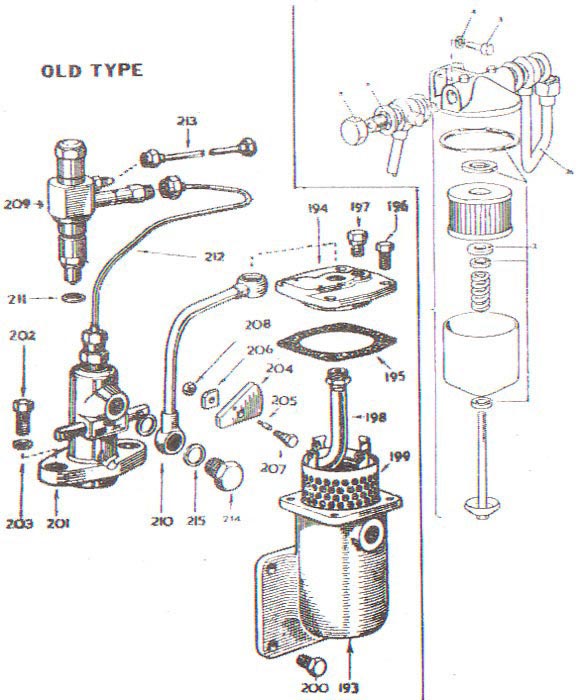

| – | FUEL SYSTEM (OLD TYPE) | – | – | – | – |
| – | Fuel Filter complete | 23/2283C | 1 | 1 | 1 |
| 193. | Filter Body | 23/2283 | 1 | 1 | 1 |
| 194. | Filter Body Cover | 23/2282 | 1 | 1 | 1 |
| 195. | Filter Body Joint | 23/2278 | 1 | 1 | 1 |
| 196. | Filter Body Set Pin | S888 | 4 | 4 | 4 |
| 197. | Filter Vent | 10-2-89 | 1 | 1 | 1 |
| 198. | Filter Wick with Nipple & Clip | 23/2288C | 1 | 1 | 1 |
| 199. | Filter Wick Container | 23/2279 | 1 | 1 | 1 |
| – | Filter swivel union screw | 23/472 | 2 | 2 | 2 |
| – | Filter swivel union joint | 291-2265 | 4 | 4 | 4 |
| 200. | Set Screw | S739 | 4 | 4 | 4 |
| – | FUEL PUMP | – | – | – | – |
| 201. | Fuel Pump | – | 1 | – | – |
| – | Fuel Pump Element (plunger & Barrel) | 1/1Z | 1 | 1 | 2 |
| 202. | Fuel Pump Set pin | S203 | 2 | 2 | 4 |
| 203. | Fuel pump washer | S184 | 2 | 2 | 4 |
| 204. | Fuel Pump Pavl | 10-2-189 | 1 | 1 | 2 |
| 205. | Fuel Pump chuck pin | 10-2-190 | 1 | 1 | 2 |
| 206. | Fuel pump chuck plate | 10-2-192 | 1 | 1 | 2 |
| 207. | Fuel pump chuck plate Fulcrum plate | 8-2-191 | 1 | 1 | 2 |
| 208. | Fuel Pump chuck plate nut | S15A | 1 | 1 | 2 |
| – | Fuel pump and injector complete | 23-791 | 1 | 1 | 2 |
| 209. | Fuel pump and injector comp. nozzle | H-DL/30S 406 | 1 | 1 | 2 |
| 210. | Fuel pipe filter to pump | 8-2-175 | 1 | 1 | 2 |
| 211. | Fuel injector joint | 8-1/C41 | 1 | 1 | 2 |
| 212. | Fuel pipe pump to injector | 8-3-157 | 1 | 1 | 1 |
| – | Fuel pipe pump to injector | 9-3-158 | – | – | 1 |
| 213. | Fuel leak off pipe to injector to tank | – | 1 | 1 | 2 |
| 214. | Fuel pipe fixing plug | 23/472 | 1 | 1 | 2 |
| 215. | Fuel pipe fixing plug joint | 291-2265 | 2 | 2 | 4 |
PLATE 8 – FUEL SYSTEM
| No. | Description of Part | Part No. | No. Per Set |
| – | Lubricating Oil Pump, complete | – | – |
| – | comprising* | 574-10130 | 1 |
| 1. | Pump Body and plug | *574-10940 | 1 |
| 2. | Pump Body Joint | 008-02195 | 1 |
| 3. | Pump Body Gits Seal O.SS. 625 | *008-02178 | 1 |
| 4. | Pump Plunger | *008-30175 | 1 |
| – | Circlip | *291-23110 | 1 |
| 5. | Pump Tappet (with foot) | *008-02176 | 1 |
| 6. | Pump Tappet End Pin | 008-30171 | 1 |
| 7. | Pumping Spring | *008-02150 | 1 |
| 8. | Pump Spring Cover | *008-02147 | 1 |
| 9. | Pump Inlet Valve Stop Casing | *008-02160 | 1 |
| 10. | Pump Ball Valve | *027-00787 | 2 |
| 11. | Pump Ball Valve Spring | *010-06067 | 1 |
| 12. | Pump Outlet Connection | *008-02161 | 1 |
| 13. | Pump Inlet Connection | *003-00275 | 1 |
| 14. | Pump Set Pin | 027-00038 | 2 |
| 15. | Pump Hand Lever | 003-00333 | 1 |
| 16. | Pump Hand Lever Swivel Pin | 003-00334 | 1 |
| 17. | Pump Suction Pipe | 008-02168 | 1 |
| 18. | Pump Suction Pipe Elbow | 003-00411 | 1 |
| 19. | Pump Suction Pipe Strainer | 008-02218 | 1 |
| 20. | Pump Suction Pipe Joint | 003-00306 | 1 |
| 21. | Pump Delivery Pipe | 008-02187 | 1 |
| 22. | Distribution Pipe and Union | 003-00272/003 | 1 |
| 23. | Distribution Pipe Lock Nut | 027-00017 | 1 |
| 24. | Straight Pipe | 003-00271 | 1 |
| 25. | Distribution Pipe and Support | 003-00273/003 | 1 |
| 26. | Distribution Pipe and Lock Nut | 027-00006 | 1 |

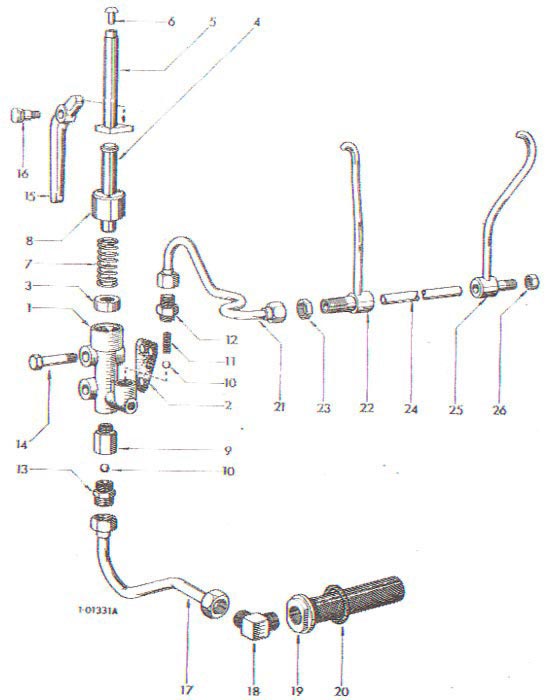

PLATE 9 – LUBRICATING OIL SYSTEM (6/1 and 8/1)
| No. | Description of Part | Part No. | No. Per Set |
| – | Lubricating Oil Pump, complete | – | – |
| – | comprising* | 574-11130 | 1 |
| 1. | Pump Body | *007-00421 | 1 |
| 2. | Pump Body Joint | 007-00422 | 1 |
| 3. | Pump Plunger | *009-02100 | 1 |
| 4. | Pump Plunger Spring | *003-00324 | 1 |
| 5. | Pump Plug | *007-00418 | 1 |
| 6. | Pump Plug Joint | *007-00419 | 1 |
| – | Joint | *007-00406 | 1 |
| – | Oil Pressure Gauge | 007-00428 | 1 |
| – | Joint for Pump Indicating Gauge and Tap | 007-00420 | 2 |
| – | Oil Pressure Gauge Tap | 001-00276 | 1 |
| – | Oil Pressure Gauge Union | 007-00442 | 1 |
| 7. | Pump Test Plug Joint | *187-00059 | 1 |
| 8. | Pump Test Plug | *187-00055 | 1 |
| 9. | Pump Test Plug Adaptor | *007-00432 | 1 |
| 10. | Pump Ball Valve | *007-00425 | 2 |
| 11. | Pump Ball Valve Spring | *007-00426 | 1 |
| 12. | Pump Adaptor Joint | *007-00419 | 1 |
| 13. | Pump Inlet Connection | *007-00427 | 1 |
| 14. | Oil Suction Pipe | 007-00276 | 1 |
| 15. | Oil Suction Pipe Connection | 007-00413 | 1 |
| 16. | Oil Suction Elbow | 007-00408/001 | 1 |
| 17. | Oil Suction Lock Nut | 027-00404 | 1 |
| 18. | Oil Suction Joint | 003-00306 | 1 |
| 19. | Oil Suction Ball Valve | 007-00425 | 1 |
| 20. | Oil Suction Strainer Assembly comprising | 574-11400 | 1 |
| 21. | Oil Suction Drain Plug | 007-00407 | 1 |
| 22. | Oil Suction Drain Plug Joint | 007-00406 | 2 |
| 23. | *Oil Delivery Pipe (Iron) | 009-02070 | 1 |
| 24. | Oil Delivery Pipe (Copper) | 009-02072 | 1 |
| 25. | Oil Distribution Pipe | 574-10550 | 1 |
| 26. | Oil Distribution Pipe Bolt & Nut 027-00007 | 027-01320 | 1 |
| 27. | Oil Distribution Pipe Joint | 616-01608 | 2 |
| 28. | Oil Distribution Pipe Connection | 007-00412 | 5 |
| 29. | Oil Pipe to Connecting Rod Troughs | 007-00415 | 2 |
| 30. | Oil Pipe to Center Main Bearing | 007-00414 | 1 |
| 31. | Oil Pipe to Governor End Main Bearing | 007-00274 | 1 |
| 32. | Oil Pipe to Main Bearing | 007-00275 | 1 |
| – | Nut for Pump Body | 027-00007 | 4 |
| – | Spring Washer for Nut | 027-00413 | 4 |
| – | Pump Inlet Connection Joint | 007-00406 | 2 |
| – | Union Nut | 027-01948 | 5 |
PLATE 10 – LUBRICATING OIL SYSTEM (12/2 and 16/2)
| No. | Description of Part | Part No. | 6/1 | 8/1 | 12/2 & 16/2 |
| – | Fuel Tank | 008-30037 | 1 | 1 | – |
| – | Fuel Tank Valve | 010-07050 | 1 | 1 | – |
| – | Valve Joint | 007-00406 | 1 | 1 | – |
| – | Fuel Tank Bracket R. H. | 008-07223 | 1 | 1 | – |
| – | Fuel Tank Bracket L. H. | 008-07224 | 1 | 1 | – |
| – | Fuel Tank Bearers | 008-30044 | 2 | 2 | – |
| – | Fuel Tank Cap | 027-03824 | 1 | 1 | – |
| – | Fuel Tank Strap | 008-30045 | 2 | 2 | – |
| – | Hook Bolts | 008-07103 | 2 | 2 | – |
| – | Nut for Hook Bolt | 027-00907 | 4 | 4 | – |
| – | Bolt | 027-00332 | 2 | 2 | – |
| – | Washer | 027-00618 | 2 | 2 | – |
| – | Nut | 027-00008 | 2 | 2 | – |
| – | Spring Washer | 027-00451 | 2 | 2 | – |
| – | Fuel Pipe – Tank to Filter | 008-24180 | 1 | 1 | – |
| – | Fuel Leak-off Pipe | 008-07230 | 1 | 1 | – |
| – | Bolt | 027-00739 | 4 | 4 | – |
| – | Spring Washer | 0027-00393 | 4 | 4 | – |
| – | Grommet | 201-11710 | 1 | 1 | – |
| No. | Description of Part | Part No. | 6/1 | 8/1 | 12/2 & 16/2 |
| – | Spanner 3/16″ X 1/4″ | 027-00323 | 1 | 1 | 1 |
| – | Spanner 5/16″ X 3/8″ | 027-00151 | 1 | 1 | 1 |
| – | Spanner 7/16″ X 1/2″ | 027-00152 | 1 | 1 | 1 |
| – | Spanner 9/16″ X 11/16 | 027-04754 | 1 | 1 | 1 |
| – | Spanner 3/4″ X 7/8″ | 027-008840 | 1 | 1 | 1 |
| No. | Description of Part | Part No. | 6/1 | 8/1 | 12/2 & 16/2 |
| – | Starting Handle, complete, 6/1 and 8/1 only | 574-10360 | 1 | 1 | – |
| – | Starting Handle, complete | 574-10620 | – | – | 1 |
| – | Starting Handle Crank | 009-05024 | 1 | 1 | 1 |
| – | Starting Handle Clutch Pin | 003-00362 | 1 | 1 | 1 |
| – | Starting Handle Split Pin | 027-00120 | 1 | 1 | 1 |
| – | Starting Handle Spring | 003-00363 | 1 | 1 | – |
| – | Starting Handle Wood Grip, 6/1 and 8/1 only | 008-05121 | 1 | 1 | – |
| – | Starting Handle Wood Grip | 028-00078 | – | – | 1 |
| – | Starting Handle Wood Grip Pin | 008-24233 | 1 | 1 | – |
| – | Starting Handle Wood Grip Pin with Washer | 009-24234 | – | – | 1 |
| – | Starting Handle Grip Pin Lock Nut | 027-00904 | 1 | 1 | 1 |
| Description of Part | Part No. | Material | 6/1 & 8/1 | 12/2 & 16/2 |
| Joint for Camshaft End Cover | 003-00153 | Paper | 1 | 2 |
| Joint for Crankcase Door | 003-00301 | Fiber | 1 | – |
| Joint for Plugs | 007-00420 | Fiber | 2 | 3 |
| Joint for Breather Body | 003-00309 | Fiber | 1 | 1 |
| Joint for Cylinder Flange | 008-02094 | Paper | *4 | *8 |
| Joint for Crankcase Door | 007-00301 | Fiber | – | 1 |
| Joint for Crankshaft Housing | 008-02062 | Paper | 2 | 6 |
| Joint for Water Jacket Door | 026-00112 | Fiber | 2 | 2 |
| Joint for Water Pipe Flange | 010-02059 | Fiber | *2 | *4 |
| Joint for Cylinder Head | 008-03051 | C & A | *1 | *2 |
| Joint for Exhaust Flange | 003-00307 | C & A | *2 | *4 |
| Joint for Main Plug C.O.V. | 010-03091 | Copper | 5 | 10 |
| Joint for Auxiliary Plug C. O. V. | 010-03006 | Copper | *1 | *2 |
| Joint for Filter Cover | 023-02278 | Fiber | 1 | 1 |
| Joint for Swivel Union Pipes | 291-22650 | Copper | 6 | 6 |
| Joint for Plugs etc. | 007-00406 | Fiber | 1 | 3 |
| Joint for Drain Plug | 004-00197 | Fiber | 1 | 1 |
| Joint for Fuel Injector | 010-03041 | C & A | *1 | *2 |
| Joint for Plug | 003-00306 | Fiber | 2 | 1 |
| Joint for Pump Body | 009-02071 | Paper | – | 1 |
| Joint for Distribution | 007-00422 | Fiber | – | 2 |
| Felt Ring for Crankshaft | 003-00664 | Felt | 2 | 2 |
| Joint for Drain Plug Lub. Oil Pump | 007-00419 | Fiber | – | 2 |
| Joint for Pump Body | 008-02195 | Paper | 1 | – |
| Joint for Exhaust Manifold Flange | 028-00089 | C & A | – | *1 |
| Valve Tappet Guide Joint | 009-02227 | C & A | – | 4 |
| Joint for Pump Inlet Connections | 007-00406 | Fiber | – | 2 |
| Joint for Fuel Filter Plug | 291-30620 | Fiber | 4 | 4 |
| No. | Description of Part | No. Per Set |
| 125. | Ratio Valve Spindle | 1 |
| 126. | Ratio Valve Spindle Key | 1 |
| 127. | Ratio Valve Spring Washer | 1 |
| 128. | Ratio Valve Handle | 1 |
| 129. | Ratio Valve Spring | 1 |
| 130. | Ratio Valve Lock Nut | 1 |
| 131. | Ratio Valve Instruction Plate | 1 |
| 132. | Instruction Plate Revate | 2 |
| 133. | Ratio Valve Nut | 1 |
| 134. | Ratio Valve Plug | 1 |
| 135. | Main Plug Washer | 1 |
| 136. | Auxiliary Plug | 1 |
| 137. | Auxiliary Plug Washer | 1 |
| 138. | Cylinder Head | 1 |
| 139. | Water Circuit Ceiling Plug | 4 |
| 140. | Air and Exhaust Flange Stud | 4 |
| 141. | Injector Stud | 2 |
| 142. | Head and Rocket Bracket Stud | 1 |
| 143. | Water outlet Flange Stud | 1 |
| 144. | Inlet Valve Guide | 1 |
| 145. | Expose Valve Guide | 1 |
| 146. | Inlet and Exhaust Valve | 2 |
| 147. | Valve Colats | 2 |
| 148. | Valve Spring (Inner) | 2 |
| 149. | Valve Spring (Outer) | 2 |
| 150. | Valve Spring Carrier | 2 |
| 151. | Valve Cap | 2 |
| 152. | Head Cover | 1 |
| 153. | Head Cover Nut | 1 |
| 154. | Gasket | 1 |
| 155. | Injector Flange | 1 |
| 156. | Injector Flange Nut | 2 |
| 157. | Water Outlet Flange | 1 |
| 158. | Water Outlet Flange Packing | 1 |
| 159. | Water Outlet Flange Nut | 2 |
| 160. | Air Inlet Flange | 1 |
| 161. | Air and Exhaust Flange Packing | 2 |
| 162. | Spring Washer | 4 |
| 163. | Air and Exhaust Flange Nut | 4 |
| 164. | Exhaust Flange | 1 |
| 165. | Valve Rocker | 2 |
| 166. | Rocker Bush | 2 |
| 167. | Rocker Bracket | 1 |
| 168. | Rocker Bracket Nut | 1 |
| 169. | Rocker Adjusting Screw | 2 |
| 170. | Adjusting Screw Lock Nut | 2 |
| 171. | Rocket Striking Pin | 2 |
| 172. | Rocket Shaft | 1 |
| 173. | Rocker Shaft Grasser | 1 |
| 174. | Rocker Grease Connection | 1 |
| 175. | Rocker Shaft Washer | 2 |
| 176. | Rocker Shaft Spring | 2 |
| 177. | Rocker Shaft Bolt | 1 |
| 178. | Inlet Valve Push Rod | 1 |
| 179. | Exhaust Valve Push Rod | 1 |

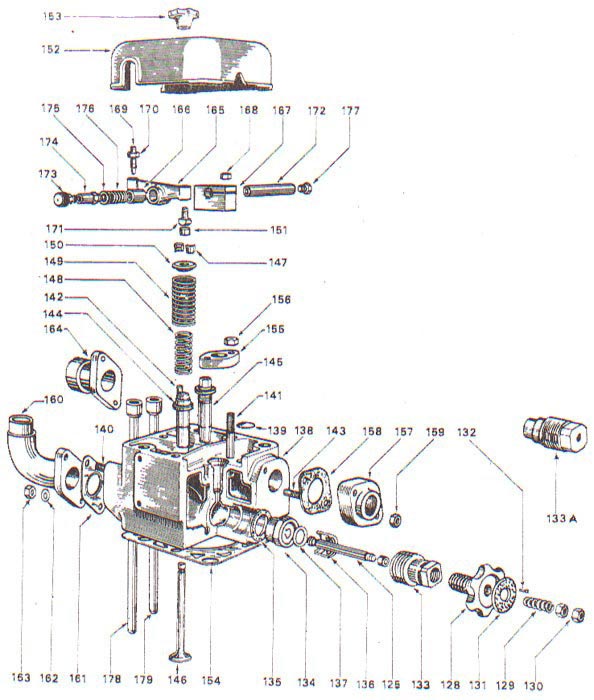

CYLINDER HEAD ASSEMBLY COMPRESSION-RATIO CHANGE OVER VALVE
